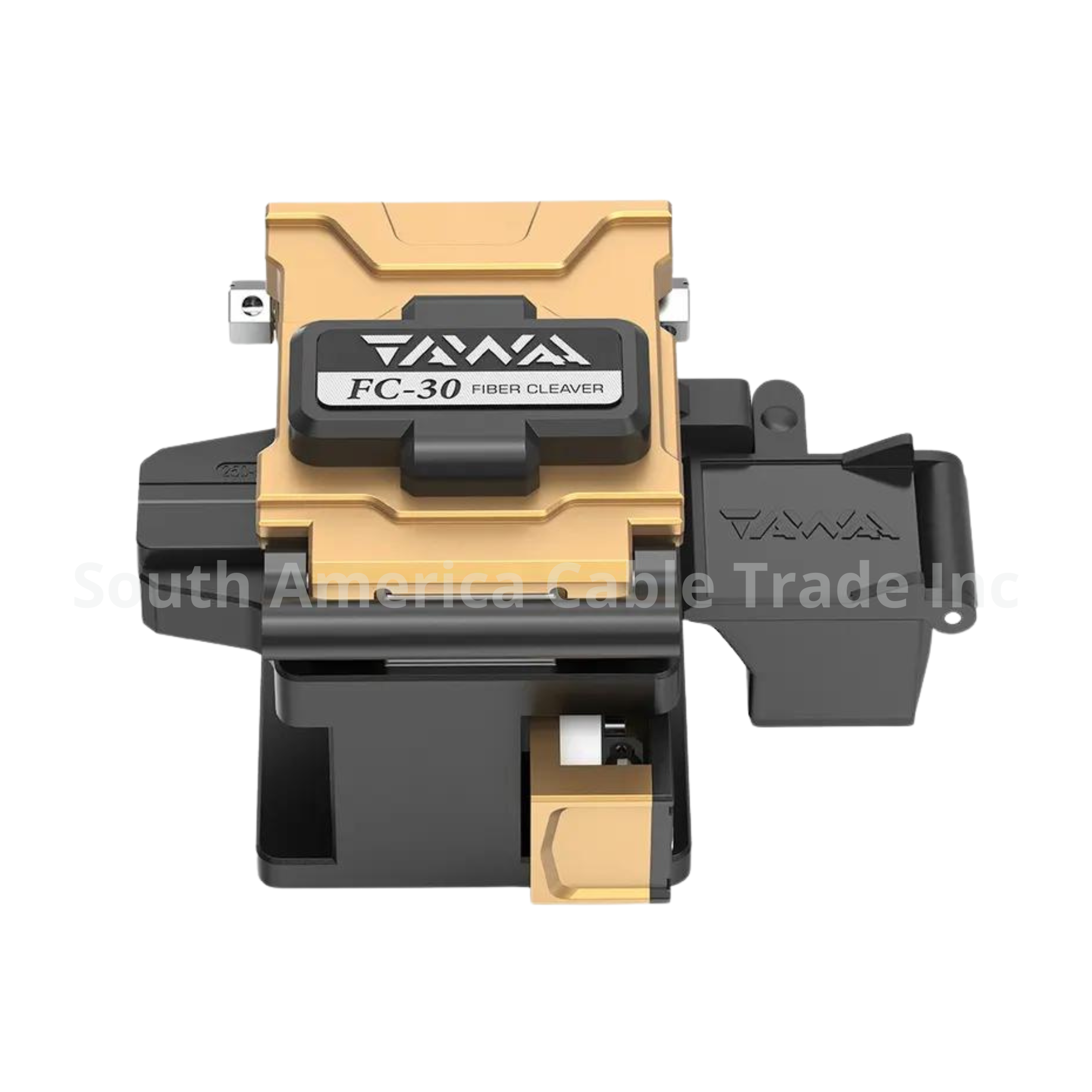

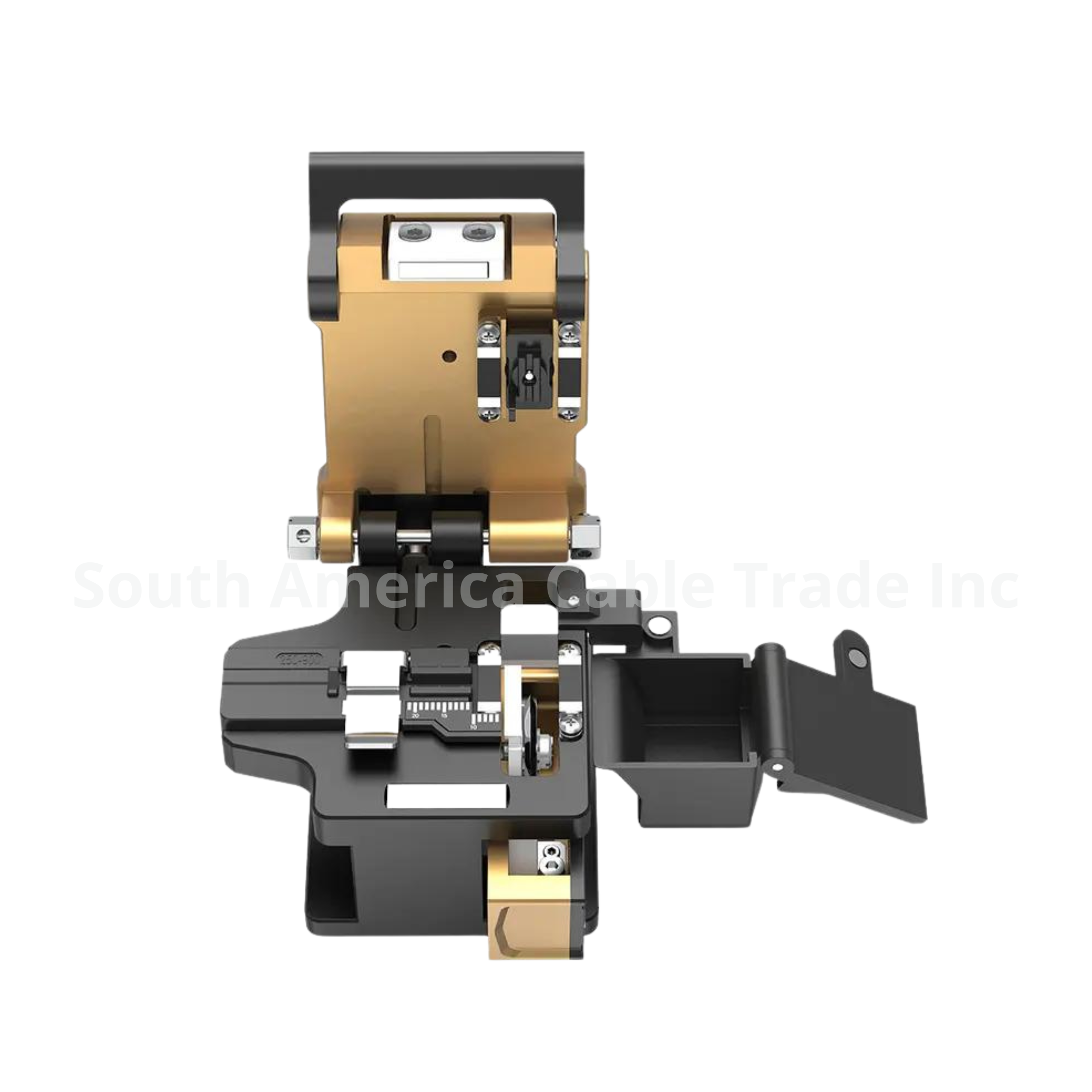

CORTADORA FIBRA OPTICA FC-30 PROFESIONAL DE ALTA PRECISION
FC-30
$85.00
Blade life up to 48,000 times
Typical cutting angle ≤0.5 degree
Tungsten steel blade, wear resistance,high hardness, corrosion resistance
Traditional bench top design, simple andeasy to use
Double fixture design, suitable for various optical fibers of 250~3.0mm
High-precision CNC machining and forming, excellent texture
| Fiber Meterial | Single fiber |
| Cladding Diameter | 125μm |
| Cleaved Length | Single fiber: 8~20mm |
| Applicable Fiber Cable | Single fiber: 0.25 ~ 3.0mm |
| Typical Cleaved Angle | Less than 0.5 Degrees ★① |
| Typical Blade Life | Total 48,000 fiber cleaves （replaceable） ★② |
| Off-cut Collector | Pre-fitted |
| Type of Offcut Bin | Manual |
| Auto Return | Pre-fitted |
| Dimension / Weight | 77W *97D*63H(mm) / 360g |
